High-Performance Motor - A powerful and high-performance motor using 250Watts of pure power to supercharge overall performance and riding.
|
Product Details:
|
| Gears: | 10 Speed | Range Per Power: | 31 - 60 Km |
|---|---|---|---|
| Frame Material: | Aluminum Alloy | Wheel Size: | 27.5” |
| Max Speed: | <30km/h | Voltage: | 36V |
| Power Supply: | Lithium Battery | Braking System: | F/R Hydraulic Disc Brake |
| Torque: | 80-90 Nm, Central Torque System | Charging Time: | 5-6 HOURS |
| Motor Position: | Central Motor | Battery Position: | Down Tube |
| Battery Capacity: | 13.2AH | Smart Type: | Electronic |
| Fork: | Rigid Alloy6061 | Handlebar: | Alloy Handlebar And Forged Stem 4-bolt |
| Tire: | 700C*38 ALLOY Rim &KENDA Trie | Display: | LCD |

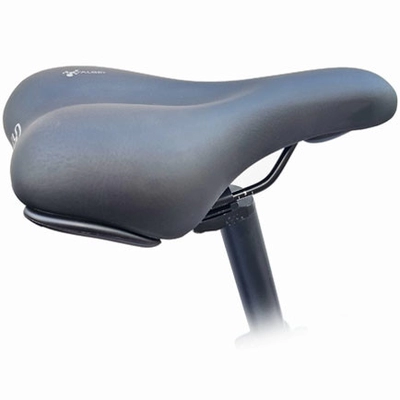

| Seat: | Selle Royal | Gross Weight: | 30kgs |
| Net Weight: | 28KG | Max Load: | 150kg-200kg |
| Speed: | Shimano Deore 10Speed & Cassette | Port: | Any Port |
| High Light: | Frame Battery Electric Dirt Bike,48v 20ah Electric Dirt Bike,27.5inch Electric Dirt Bike |
||
|
Model
|
EC-01
|
EC-02
|
EC-03
|
|
Speed class
|
5
|
5
|
5
|
|
Mileage per charge
|
60
|
60
|
60
|
|
Trame material
|
Alloy
|
Alloy
|
Alloy
|
|
Tire size
|
700C
|
700C
|
700c
|
|
Maximum speed
|
25km/h
|
25km/h
|
25km/h
|
|
Voltage
|
36v
|
36v
|
36v
|
|
Power supply
|
Lithium Battery
|
Lithium Battery
|
Lithium Battery
|
|
Braking System
|
Mechanical disc brake
|
F/R hydraulic disc brake
|
F/R hydraulic disc brake
|
|
Torque
|
80Nm
|
80Nm
|
80Nm
|
|
Charging time
|
5 hours
|
5 hours
|
5 hours
|
|
Engine position
|
central
|
central
|
central
|
|
Battery location
|
rear carrier
|
downtube
|
downtube
|
|
Battery capacity
|
11AH
|
13.2AH
|
16.5AH
|
|
Gross weight
|
28.1kgs
|
30kgs
|
30kgs
|
|
Net weight
|
27KG
|
28KG
|
28KG
|
|
Package Size
|
1420*250*950MM (85%)
|
1420*250*950MM (85%)
|
1420*250*950MM (85%)
|
|
Power(Customization available)
|
250w
|
250w
|
250w
|
|
Color(Customization available)
|
Black
|
Green
|
Blue
|
