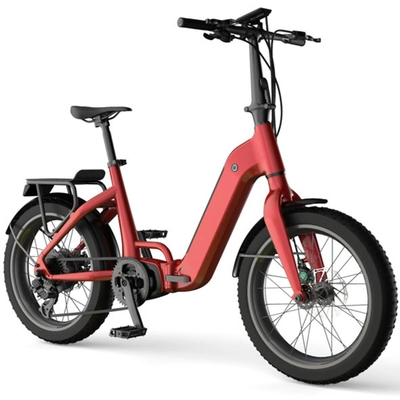

Product Details:
|
Gears: | 7 Speed | Range Per Power: | 60KM |
---|---|---|---|
Frame Material: | Alloy | Wheel Size: | 20" |
Max Speed: | 30-50Km/h | Voltage: | 48V |
Power Supply: | Lithium Battery | Braking System: | F/R Hydraulic Disc Brake |
Torque: | 50NM, Central Torque System | Charging Time: | 5-6 HOURS |
Motor Position: | Rear Hub Motor | Battery Position: | Down Tube |
Battery Capacity: | 13.2AH | Smart Type: | Electronic |
Gross Weight: | 36KGS | Net Weight: | 34.5KG |
Power: | 250w | Max Load: | 120KGS |
Front Fork: | AL6061 Suspension Fork | Handlebar: | Alloy Handlebar & Adj Stem |
Seat: | Royal Or Velo | Port: | Any Port |
High Light: | Electric Mountain Sports Bike 48V,50Km/H Electric Mountain City Bike,Small Frame Electric Mountain City Bike |
Model
|
EC-11
|
EC-12
|
Speed class
|
Shimano 9 Speed Cassette
|
SHIMANO 7 SPEEDS
|
Mileage per charge
|
60
|
60
|
Trame material
|
Alloy
|
Alloy
|
Tire size
|
700C
|
20*1.75
|
Max speed
|
25km/h
|
32km/h
|
Max load
|
150kgs
|
120KGS
|
Voltage
|
36v
|
48V
|
Power supply
|
Lithium Battery
|
Lithium Battery
|
Braking System
|
F/R hydraulic disc brake
|
F/R hydraulic disc brake
|
Torque
|
80NM
|
50NM
|
Charging time
|
5-6 HOURS
|
5-6HOURS
|
Engine position
|
CENTRAL MOTOR
|
REAR HUB MOTOR
|
Battery location
|
DOWNTUBE
|
DOWNTUBE
|
Battery capacity
|
15AH
|
13.2AH
|
Gross weight
|
30KG
|
36KGS
|
Net weight
|
28KG
|
34.5KG
|
Package Size
|
1440x270x870mm
|
1630*280*900mm
|
Power
|
250w
|
250W
|
Color
|
Grey
|
Red
|
